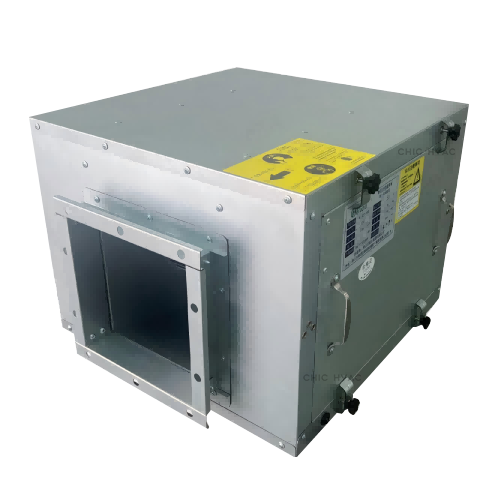

Cabinet Fan With IP55 Motor

High – Efficiency and Energy – Saving: Uses an all – copper core energy – saving motor, matched with high – quality ball bearings. Optimizes the cabinet and air duct as a whole. The structure is compact, operates with low noise and stably, and has a lasting air volume.
Long – Distance Air Supply: Uses an IP54 life – waterproof aluminum – shell pure copper cooling motor, with reliable performance. The all – metal fan wheel inside the box ensures stable air supply and high air pressure.
Easy Maintenance: Reserve inspection ports during installation. No need to disassemble the whole machine. Just remove the cover on the side of the machine body to inspect, maintain or replace parts.
Easy Maintenance: Reserve inspection ports during installation. No need to disassemble the whole machine. Just remove the cover on the side of the machine body to inspect, maintain or replace parts.

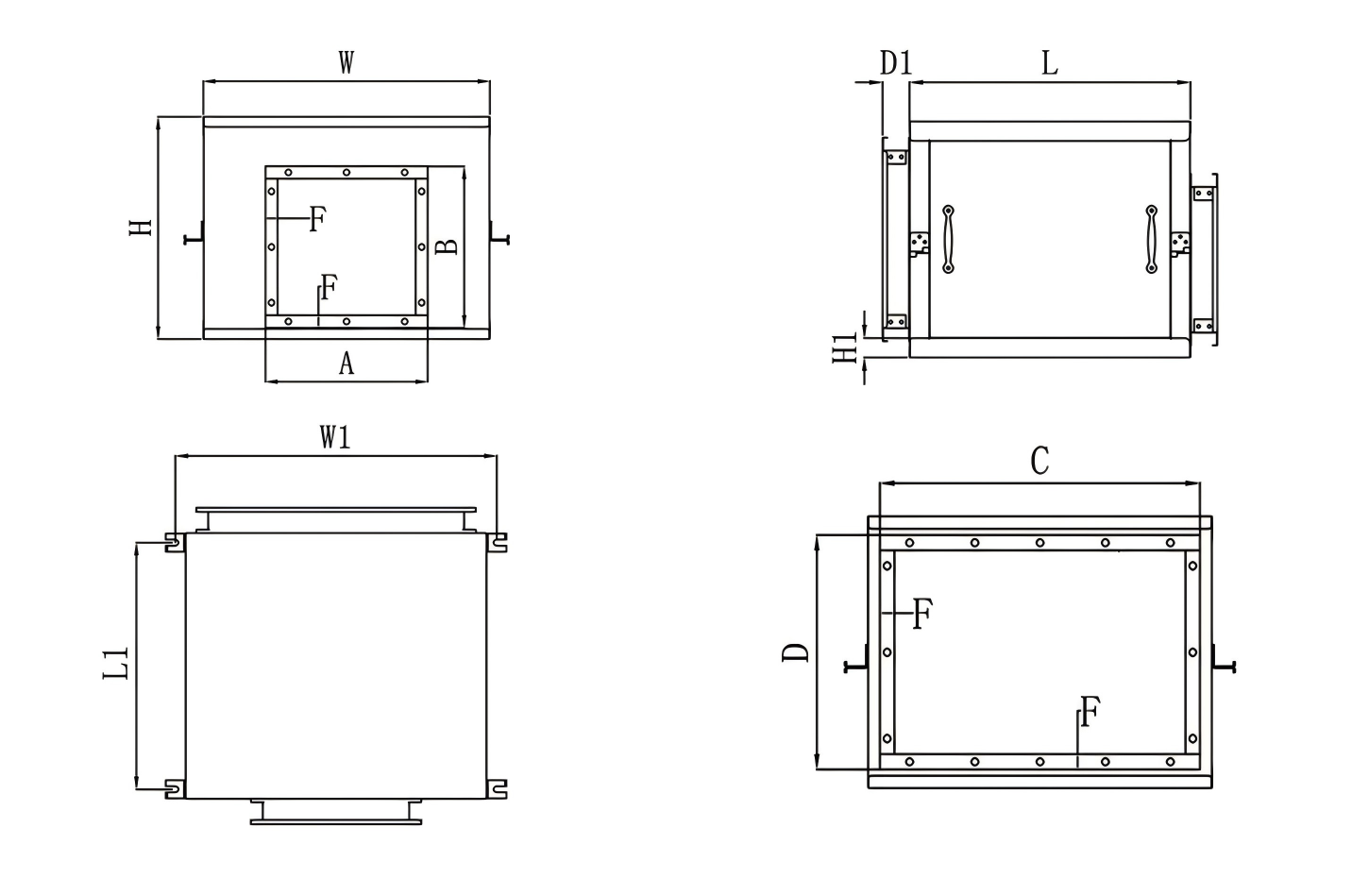

Model	L	L1	W	W1	H	HI	D1	F	Air Outlet Size (AXB)	Air Inlet Size (CXD)
KTJ23-20D	490	452	490	530	372	36	50	25	270×265	350x312
KTJ23-26D	490	452	490	530	372	36	50	25	300x280	430x312
KTJ23-31D	524	486	592	632	440	36	50	25	335x320	335x320
KTJ23-41D	524	486	592	632	440	36	50	25	335x320	550x380
KTJ23-20	490	452	490	530	372	36	50	25	270×265	350×312
KTJ23-26	490	452	490	530	372	36	50	25	300x280	430x312
KTJ23-31	524	486	592	632	440	36	50	25	335x320	335x320
KTJ23-41	524	486	592	632	440	36	50	25	335x320	550x380
KTJ28-51	640	568	700	743	535	35	50	25	410x358	640x465
KTJ28-61	700	628	740	783	600	35	50	25	400x460	550x460
KTJ31-71	700	628	740	783	600	35	50	25	400x460	550x460
KTJ31-81	700	628	780	823	600	35	50	25	400x460	745x535
KTJ35-100	810	738	780	823	665	35	50	25	440x460	745x535
KTJ35-120	810	738	880	923	715	35	50	25	440x460	745x535
KTJ40-150	848	753	947	1067	802	35	50	25	455x460	835x600
KTJ40-200	900	801	1012	1132	820	35	50	25	455x460	900×700

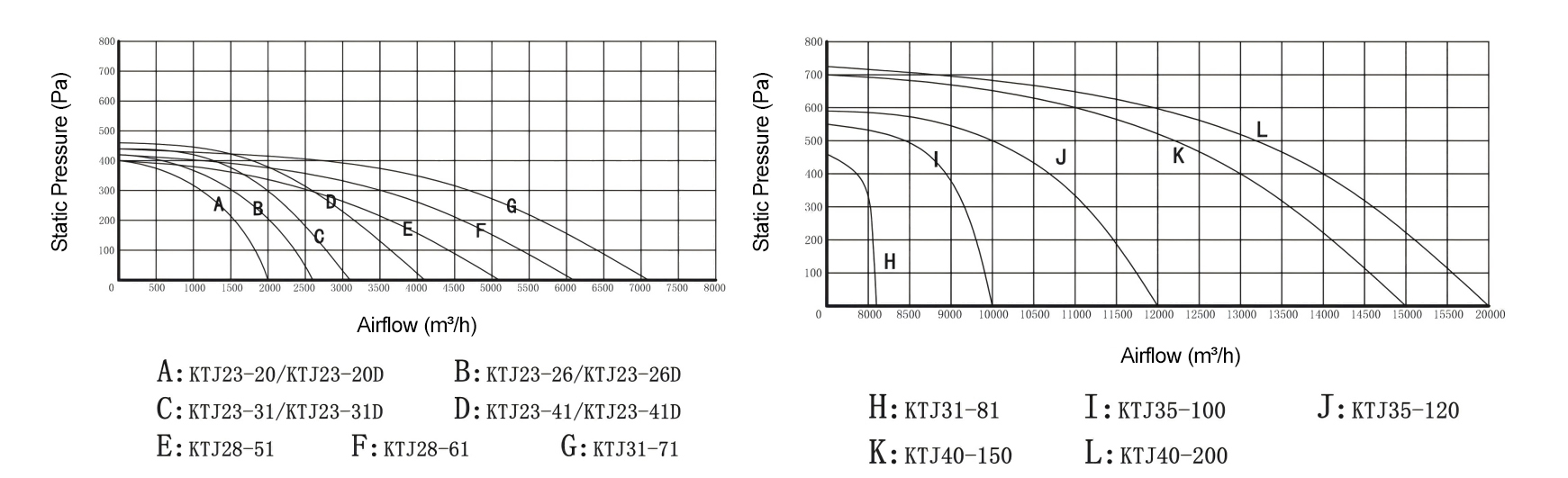

Model	Voltage(V)	Frequency(Hz)	speed(RPM)	Power(W)	Airflow(m³/h)	Static Pressure(Pa)	Noise(dB)	N.M(kg)
KTJ23-20D	220	50	1350	250	2000	400	55	26
KTJ23-26D	220	50	1350	370	2600	420	56	27
KTJ23-31D	220	50	1350	550	3100	440	61	33
KTJ23-41D	220	50	1350	750	4100	460	65	34
KTJ23-20	380	50	1350	250	2000	400	55	25.5
KTJ23-26	380	50	1350	370	2600	420	56	26
KTJ23-31	380	50	1350	550	3100	440	61	33
KTJ23-41	380	50	1350	750	4100	460	65	34
KTJ28-51	380	50	940	750	5100	400	67	58.5
KTJ28-61	380	50	940	1100	6100	420	68	66
KTJ31-71	380	50	940	1500	7100	440	69	70
KTJ31-81	380	50	940	1500	8100	461	70	72
KTJ35-100	380	50	940	2200	10000	551	71	84.5
KTJ35-120	380	50	940	2500	12000	591	72	86.5
KTJ40-150	380	50	940	3000	15000	700	75	111
KTJ40-200	380	50	940	5000	20000	725	77	128
