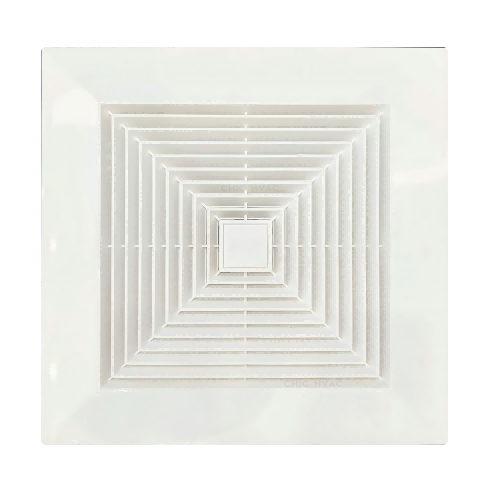

Ceiling Exhaust Fan
- High Efficiency and Energy Saving: Adopts an all – copper core energy – saving motor, matched with high – quality ball bearings. The chassis and air duct are optimized as a whole, with an exquisite and compact structure. It operates with low noise and stability, and the air volume is long – lasting.
- Flexible Selection and Matching: The full – plastic ventilation fan has a wide variety of types and application scenarios. Select models according to the area of different rooms.
- Exquisite Workmanship and Durability: Made of high – quality ABS material, it is firm and pressure – resistant, not easy to deform or dent, and not easy to be corroded or rusted.
- Convenient Maintenance: The whole machine has a thin – body design, with an exquisite and compact structure. It can be installed on the ceiling. Suitable for ventilation needs of different places.

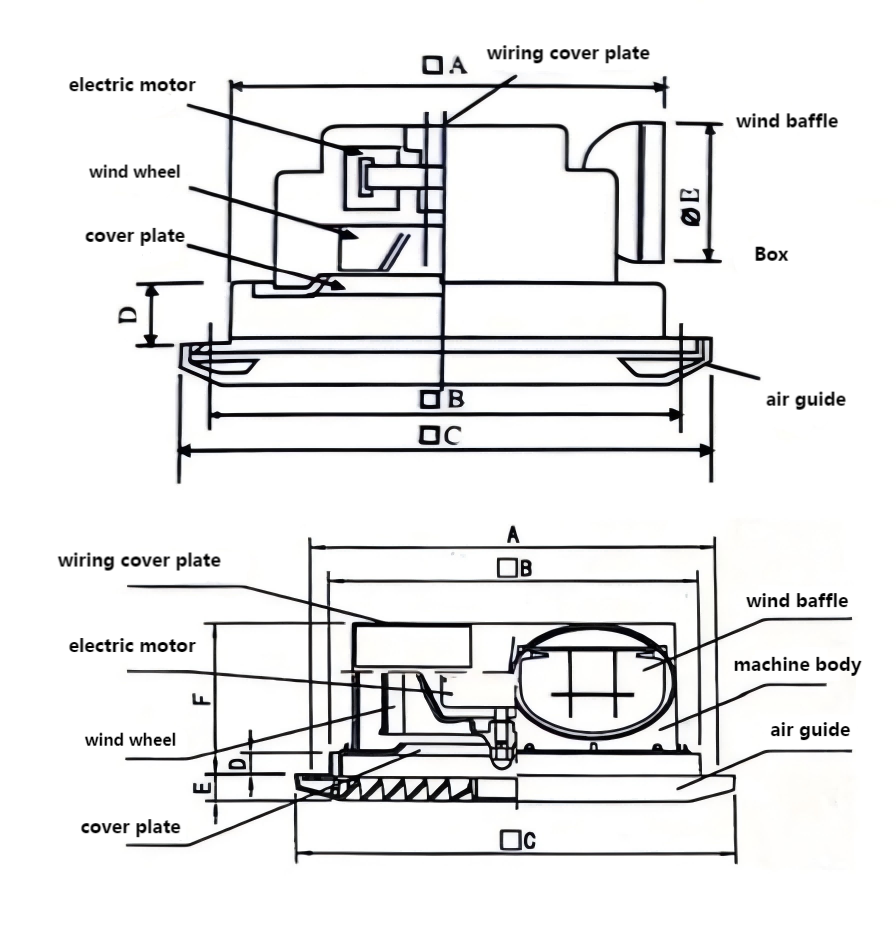

Dimensions (unit: mm):
| Model | A | B | C | D | φE |
|---|---|---|---|---|---|
| BPT10-20-12SL | 200 | 209 | 240 | 30 | 100 |
| BPT10-23-155L | 230 | 238 | 270 | 30 | 100 |
| BPT10-25-175L | 250 | 275 | 310 | 30 | 100 |
| BPT10-28-215L | 275 | 279 | 320 | 30 | 95 |
| BPT10-30-30SL | 300 | 301 | 340 | 30 | 100 |
| BPT10-34-40SL | 340 | 343 | 400 | 30 | 100 |
| BPT15-34-50SL | 340 | 340 | 400 | 30 | 150 |
performance:
| Model | Voltage(V) | Power(W) | Airflow(m³/h) | Static Pressure(Pa) | Noise(dB) | G.W (kg) | Hole Size (mm) | Panel Size (mm) | Duct Size (mm) |
|---|---|---|---|---|---|---|---|---|---|
| BFPT0 - 20 - 12SL | 220 | 30 | 120 | 65 | 42 | 1.4 | 200*200 | 245*245 | 100 |
| BFPT0 - 23 - 15SL | 220 | 40 | 150 | 65 | 42 | 1.4 | 230*230 | 270*270 | 100 |
| BFPT0 - 25 - 17SL | 220 | 30 | 170 | 95 | 41 | 1.7 | 250*250 | 304*304 | 100 |
| BFPT0 - 28 - 21SL | 220 | 44 | 210 | 165 | 43 | 1.8 | 280*180 | 329*230 | 100 |
| BFPT0 - 30 - 30SL | 220 | 45 | 300 | 200 | 45 | 2.1 | 300*300 | 335*335 | 100 |
| BFPT0 - 34 - 40SL | 220 | 45 | 400 | 205 | 46 | 2.2 | 340*340 | 400*400 | 100 |
| BFPT5 - 34 - 50SL | 220 | 50 | 500 | 210 | 47 | 2.2 | 340*340 | 400*400 | 150 |
