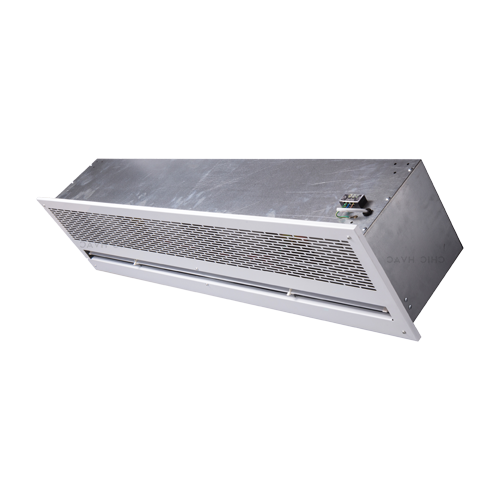

Ceiling Industrial Air Curtain
- Embedded Design: Designed for ceiling embedding or downward suspension. It is decorative and aesthetic, enabling all – round three – dimensional air supply.
- Easy – to – Clean and Fire – Resistant: All – metal shell, stainless steel air inlet panel. High fire – resistance performance, easy to clean, rust – proof and durable.
- Stable Performance: Adopting high – speed motor, centrifugal impeller and scientific air duct design. Low noise and strong wind force.
performance:
| Model | Dimensions(mm) | Voltage(V) | Frequency(Hz) | Power(W) | Speed(m/s) | Airflow(m³/h) | Noise(dB) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|
| FM-3509CS(Sprayed Panel) | 900×320X235 | 220 | 50/60 | 230 | 16-18 | 1100 | 49 | 17 |
| FM-3512CS(Sprayed Panel) | 1200×320X235 | 220 | 50/60 | 290 | 16-18 | 1500 | 50 | 22 |
| FM-3515CS(Sprayed Panel) | 1500X320X235 | 220 | 50/60 | 380 | 16-18 | 1900 | 52 | 27 |
| FM-4009CS(stainless steel panel) | 900X320X235 | 220 | 50/60 | 230 | 16-18 | 1100 | 49 | 17 |
| FM-4012CS(stainless steel panel) | 1200X320X235 | 220 | 50/60 | 290 | 16-18 | 1500 | 50 | 22 |
| FM-4015CS(stainless steel panel) | 1500X320X235 | 220 | 50/60 | 380 | 16-18 | 1900 | 52 | 27 |
