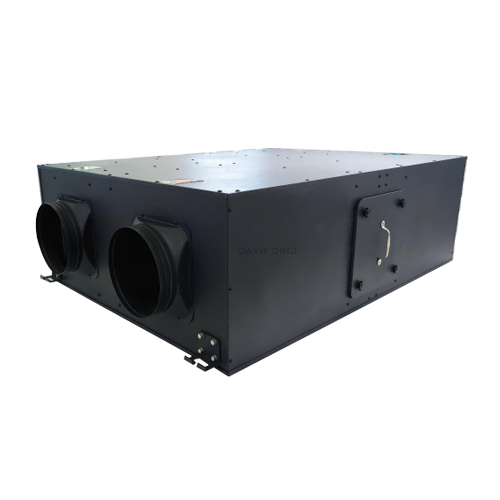

Commercial Energy Recovery Ventilator
- High – efficiency and Energy – saving: Uses all – copper core energy – saving motor, matched with high – quality ball bearings. Optimizes the cabinet and air duct as a whole. The structure is compact, runs with low noise and stably, and the air volume is long – lasting.
- Filtration System: High – quality paper total heat exchange core matches high – quality filter screen, effectively removing most harmful substances and odors in the air.
- Independent Supply and Exhaust: Independent supply and exhaust air system sends fresh outdoor air into the room. At the same time, dirty indoor air is exhausted. It makes indoor air circulation more even and the air you breathe more comfortable.
- Easy Maintenance: Reserve inspection ports during installation. Just open the inspection door below the product to repair, maintain or replace accessories and filter screens.

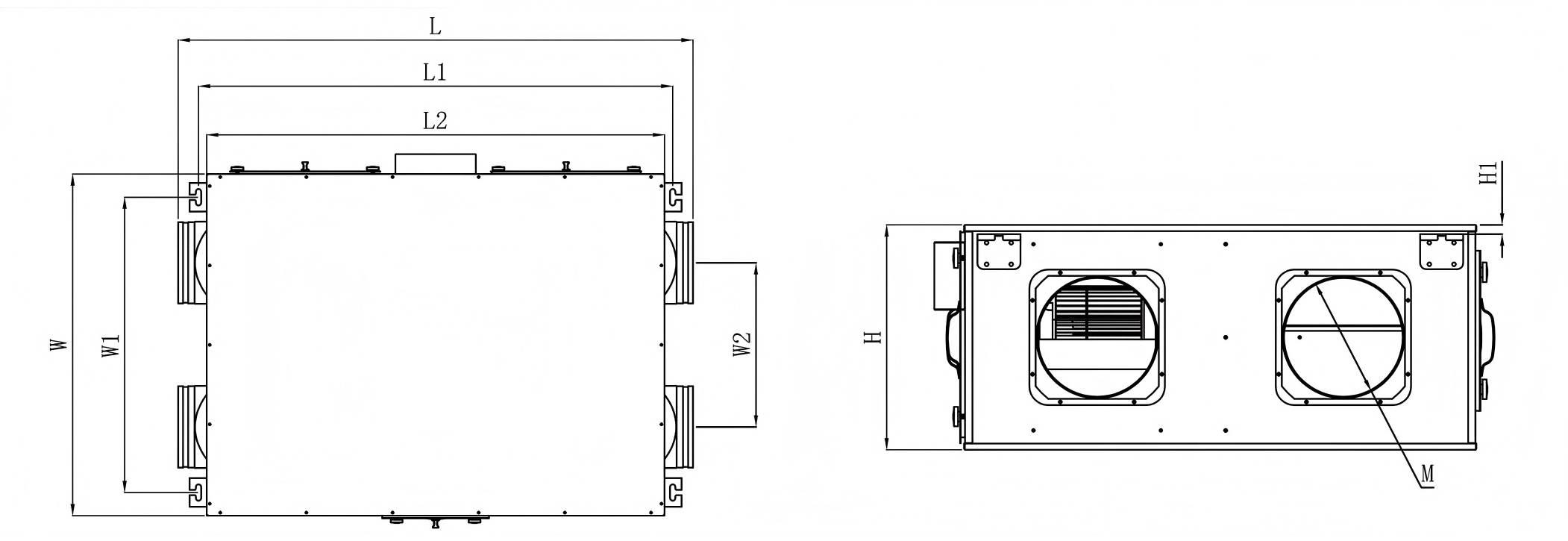

Dimensions (unit: mm):
| Model | L | L1 | L2 | W | W1 | W2 | H | H1 | M |
|---|---|---|---|---|---|---|---|---|---|
| SYQR-1000 | 1255 | 1156 | 1116 | 832 | 719 | 400 | 365 | 15 | φ200 |
| SYQR-1500 | 1255 | 1156 | 1116 | 832 | 719 | 400 | 365 | 15 | φ250 |
| SYQR-2000 | 1299 | 1200 | 1160 | 832 | 734 | 400 | 380 | 15 | φ250 |
| SYQR-2500 | 1478 | 1379 | 1338 | 975 | 877 | 485 | 421 | 15 | φ250 |

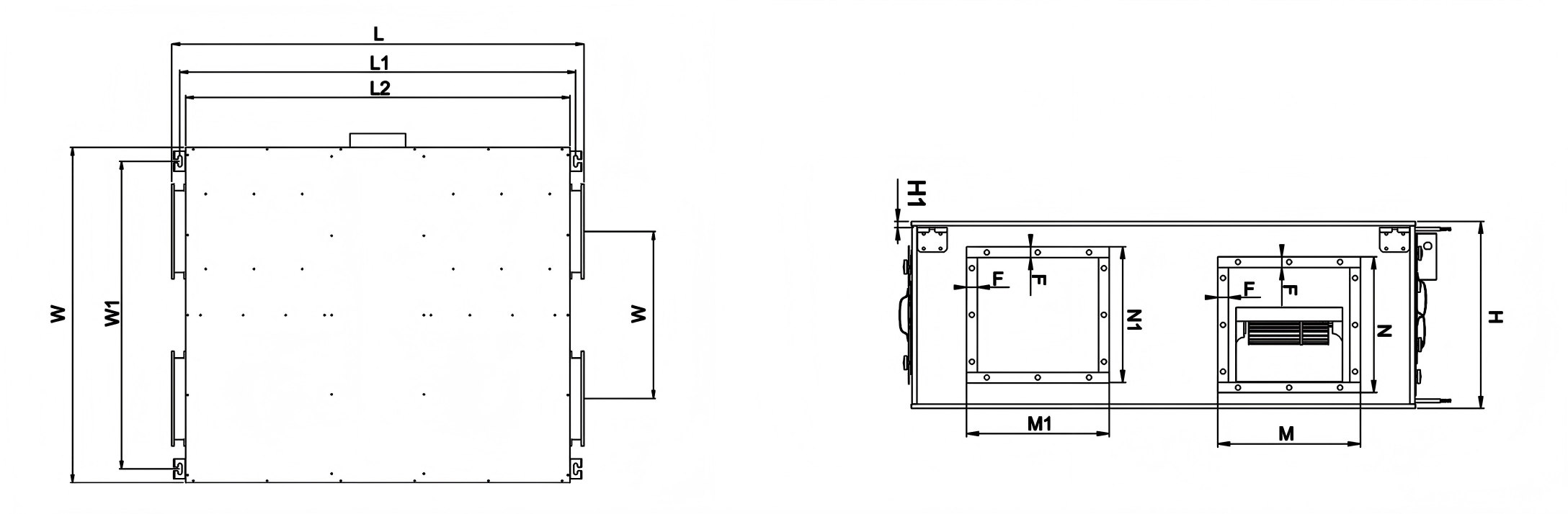

Dimensions (unit: mm):
| Model | L | L1 | L2 | W | W1 | W2 | H | H1 | F | MxN | M1xN1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| (Air Outlet Size ) | (Air Inlet Size) | ||||||||||
| SYQR-3000 | 1452 | 1395 | 1355 | 1185 | 1087 | 590 | 440 | 15 | 25 | 335X320 | 430X312 |
| SYQR-4000 | 1452 | 1395 | 1355 | 1185 | 1087 | 590 | 440 | 15 | 25 | 335X320 | 430X312 |
| SYQR-5000 | 2009 | 1757 | 1912 | 1201 | 1321 | 536 | 730 | 130 | 25 | 400X460 | 400X460 |
| SYQR-6000 | 2009 | 1757 | 1912 | 1201 | 1321 | 536 | 730 | 130 | 25 | 400X460 | 400X460 |
| SYQR-8000 | 2009 | 1757 | 1912 | 1201 | 1321 | 556 | 795 | 130 | 25 | 440X460 | 440X460 |

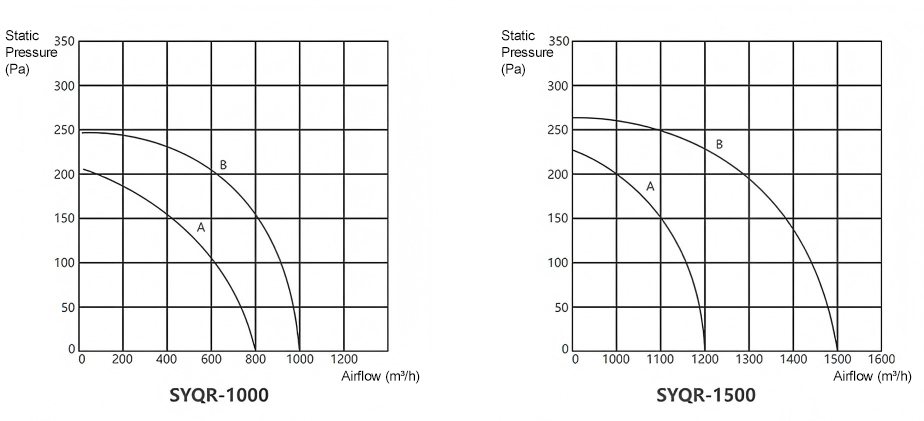

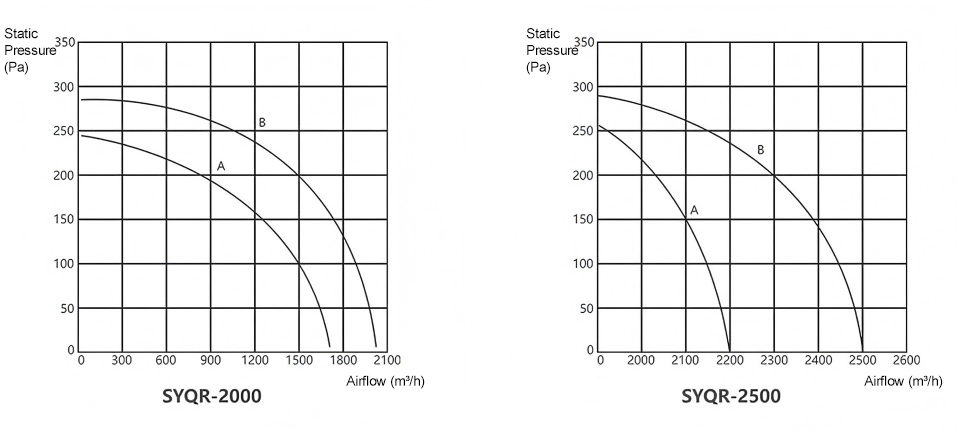

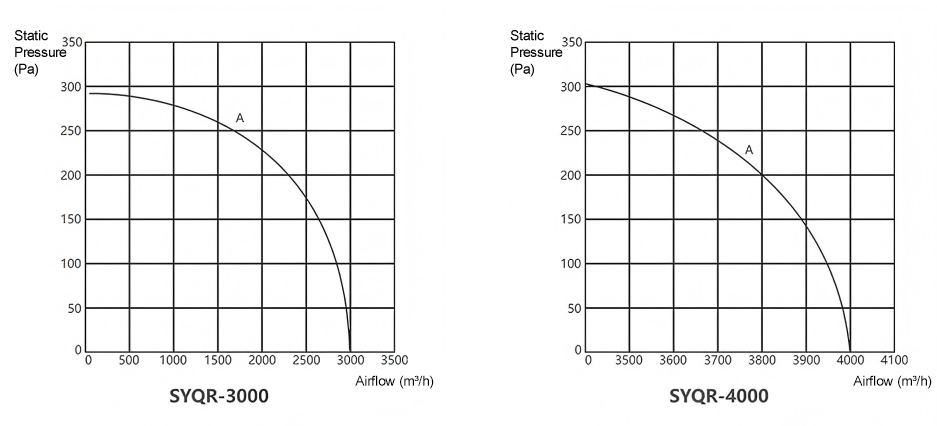

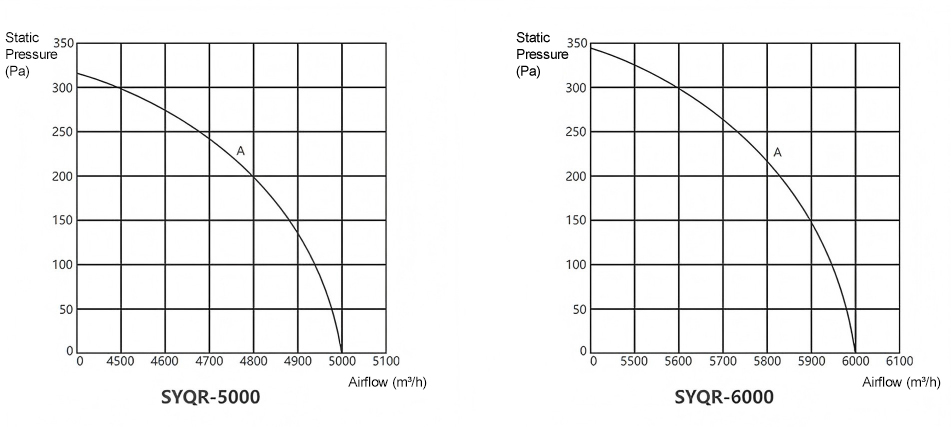

performance:
| Model | Gear | Voltage(V) | Frequency(Hz) | Power(W) | Airflow(m³/h) | Static Pressure(Pa) | Noise(dB) | Primary Filter(%) | Exchange Efficiency Rate(%) | Enthalpy Exchange Rate(%) | N.W(kg) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cooling | Heating | Cooling | Heating | ||||||||||
| SYQR-1000 | H/L | 220 | 50 | 600/500 | 1000/800 | 245/210 | 48/46 | 76.1 | 61/63 | 60/69 | 61/65 | 65/69 | 66.5 |
| SYQR-1500 | H/L | 220 | 50 | 1100/900 | 1500/1200 | 265/230 | 52/50 | 76.1 | 65/66 | 68/71 | 64/68 | 65/71 | 67 |
| SYQR-2000 | H/L | 220 | 50 | 1400/1200 | 2000/1700 | 270/245 | 55/53 | 76.1 | 64/66 | 65/73 | 63/68 | 66/73 | 83 |
| SYQR-2500 | H/L | 220 | 50 | 1600/1400 | 2500/2200 | 285/255 | 56/53 | 76.1 | 64/69 | 63/76 | 63/68 | 62/72 | 85 |
| SYQR-3000 | / | 220/380 | 50 | 1900 | 3000 | 275 | 57 | 76.1 | 65 | 69 | 66 | 69 | 106.5 |
| SYQR-4000 | / | 220/380 | 50 | 2200 | 4000 | 305 | 58 | 76.1 | 63 | 71 | 64 | 70 | 107.5 |
| SYQR-5000 | / | 380 | 50 | 3000 | 5000 | 320 | 60 | 76.1 | 67 | 74 | 60 | 68 | 164 |
| SYQR-6000 | / | 380 | 50 | 3300 | 6000 | 345 | 62 | 76.1 | 70 | 77 | 63 | 70 | 195 |
| SYQR-8000 | / | 380 | 50 | 4400 | 8000 | 370 | 65 | 76.1 | 71 | 75 | 67 | 72 | 284 |
