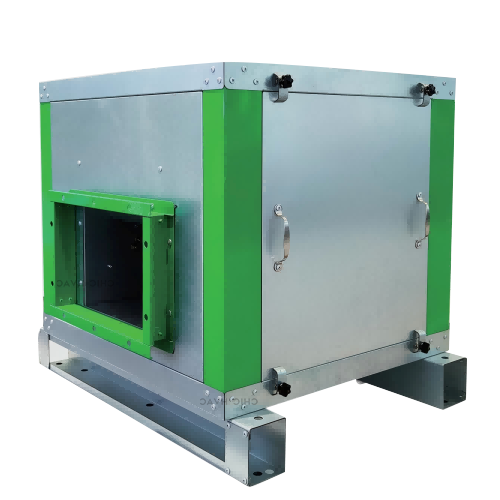

High Pressure Air Cabinet Fan
- High Static Pressure Design: Solves pressure problems that general cabinet fans can’t handle. Retains the high – pressure characteristics of centrifugal fans and the large air volume feature of cabinet fans. More suitable for use in kitchens with high – resistance environments.
- Long – Distance Air Supply: Uses an IP54 life – waterproof aluminum – shell pure copper cooling motor, with reliable performance. The air duct inside the box and all – metal fan wheel ensure stable air supply and high air pressure.
- Built – in Motor Design: The cabinet structure is compact and reasonable, small in size, effectively saving installation space. Has great application advantages in complex and narrow spaces like shopping malls and kitchens.
- Easy Maintenance: Reserve inspection ports during installation. No need to disassemble the whole machine. Just remove the cover on the side of the machine body to inspect, maintain or replace parts.

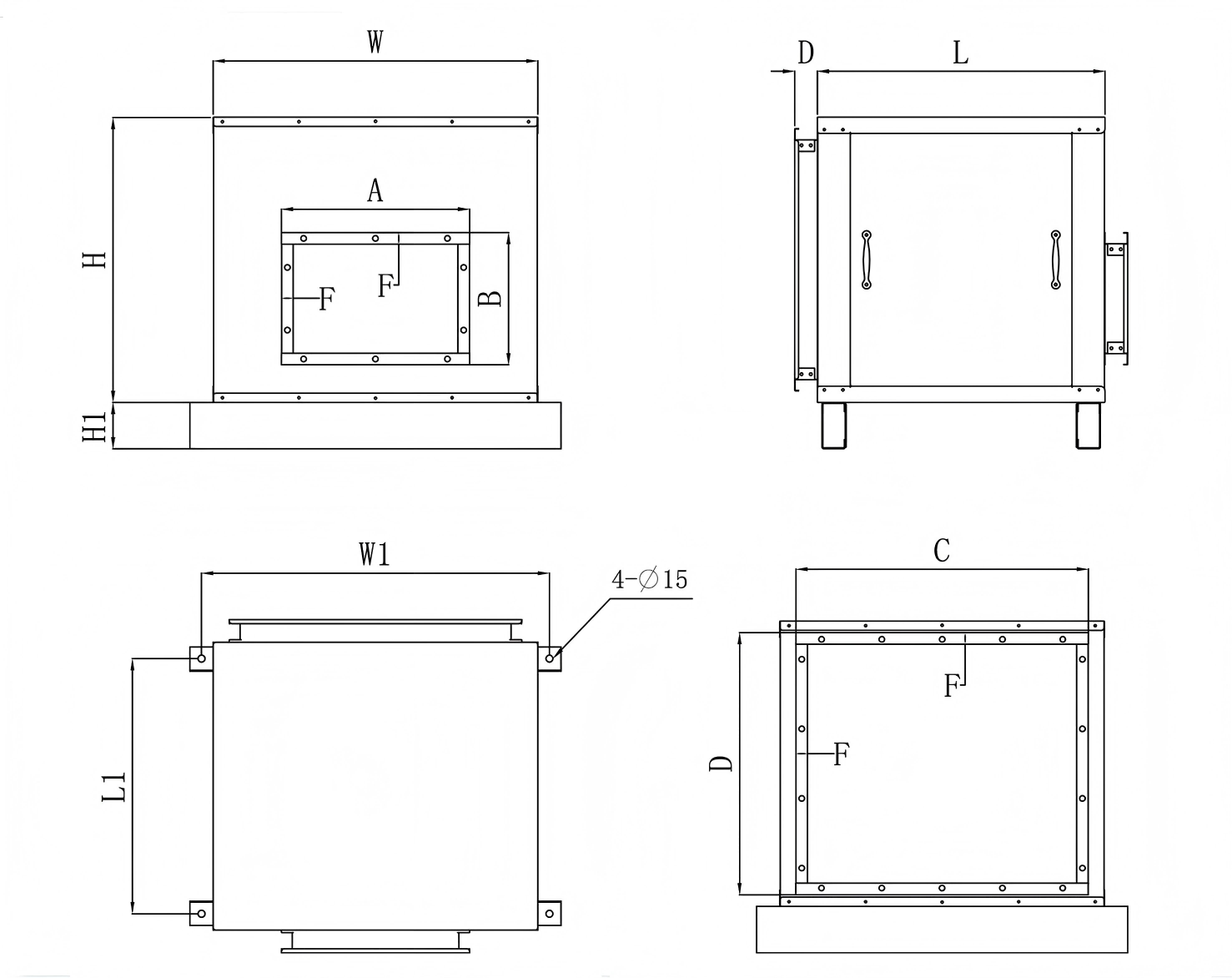

Dimensions (unit: mm):
| Model | L | L1 | W | W1 | H | HI | D1 | F | Air Outlet Size (AXB) | Air Inlet Size (CXD) |
|---|---|---|---|---|---|---|---|---|---|---|
| DT28-6000 | 620 | 520 | 700 | 750 | 615 | 100 | 50 | 25 | 405X285 | 630X565 |
| DT30-8000 | 650 | 550 | 750 | 800 | 650 | 100 | 50 | 25 | 430X300 | 680X600 |
| DT30-10000 | 650 | 550 | 750 | 800 | 650 | 100 | 50 | 25 | 430X300 | 680X600 |
| DT32-12000 | 725 | 625 | 800 | 850 | 725 | 100 | 50 | 25 | 405X330 | 730X675 |

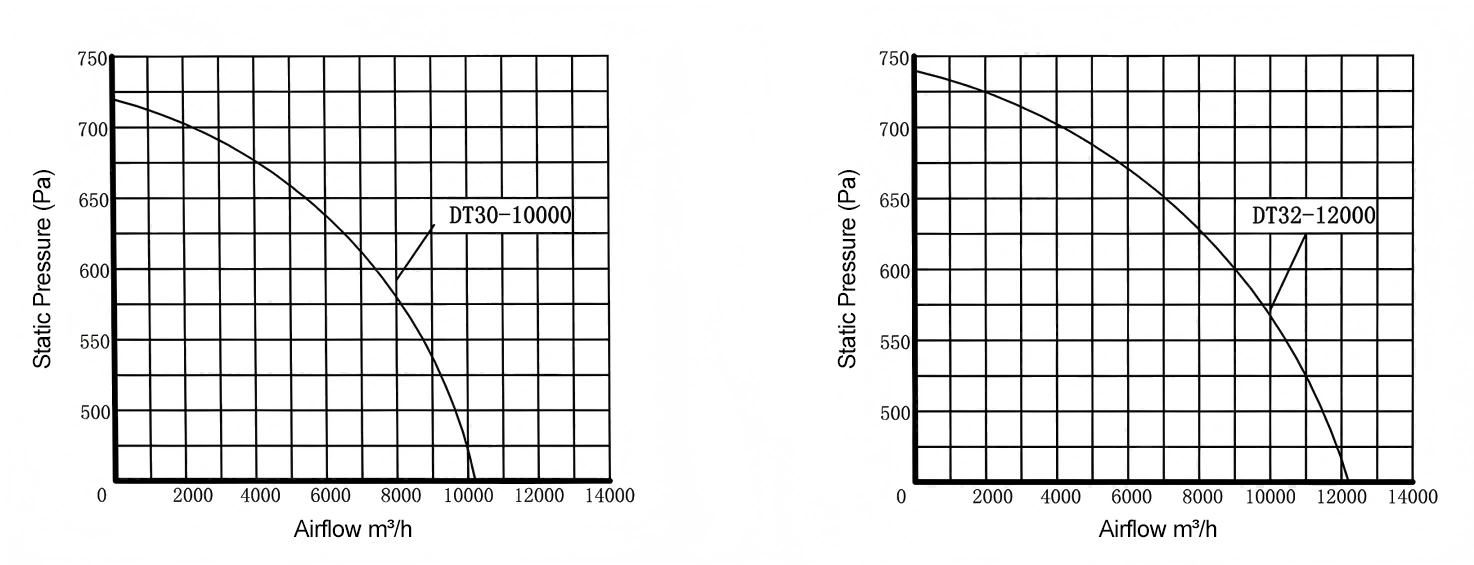

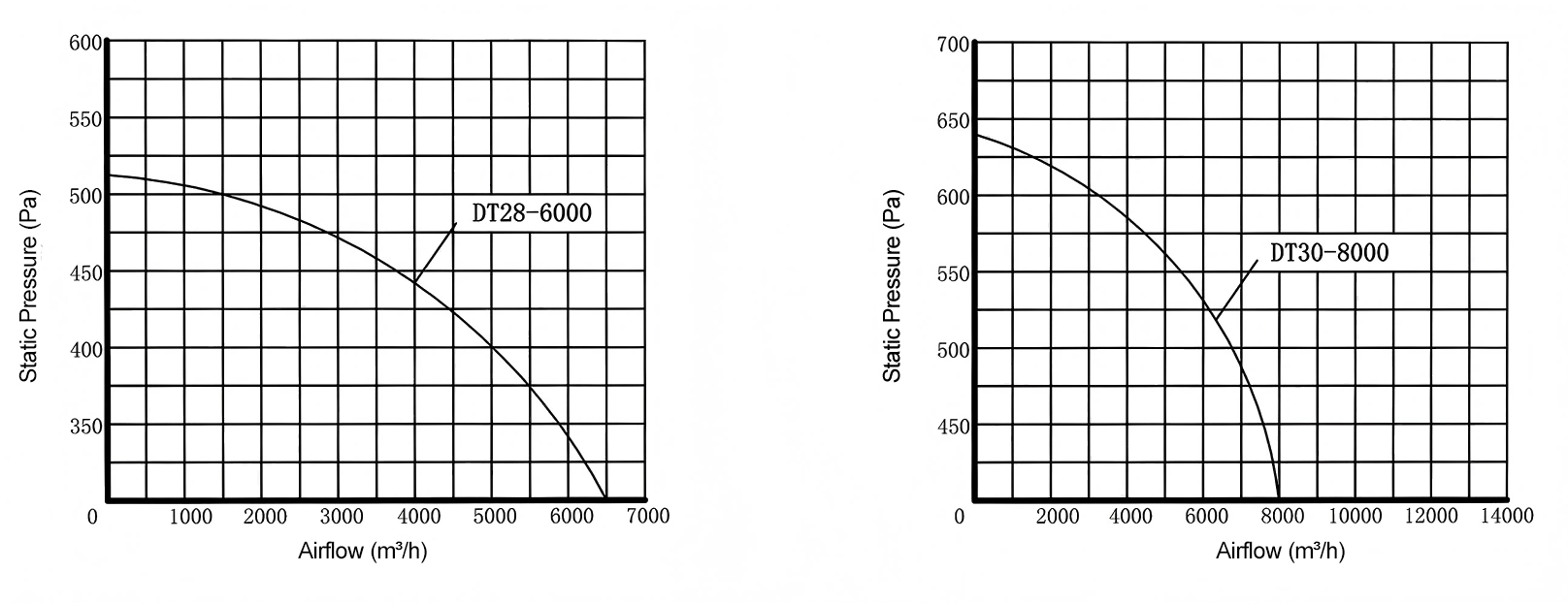

performance:
| Model | Voltage(V) | Frequency(Hz) | speed(RPM) | Power(W) | Airflow(m³/h) | Static Pressure(Pa) | Noise(dB) | N.M(kg) |
|---|---|---|---|---|---|---|---|---|
| DT28-6000 | 380 | 50 | 1400-1450 | 1500 | 6500-4800 | 520-710 | 64 | 60 |
| DT30-8000 | 380 | 50 | 1400-1450 | 2200 | 8500-6500 | 640-740 | 67 | 68 |
| DT30-10000 | 380 | 50 | 1400-1450 | 3000 | 10500-8500 | 720-800 | 70 | 72 |
| DT32-12000 | 380 | 50 | 1400-1450 | 4000 | 12500-9000 | 740-850 | 73 | 90 |
