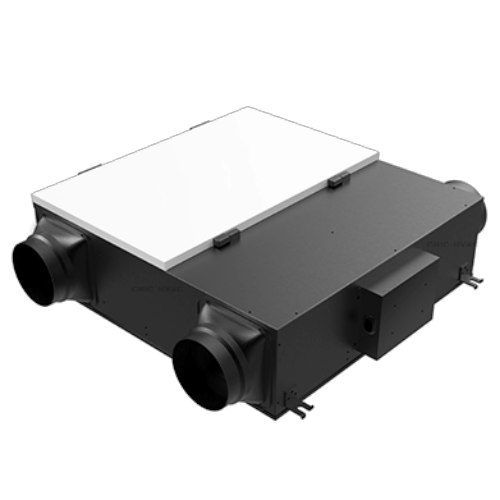

Home Energy Recovery Unit(Haze & PM2.5 Removal)
- High – efficiency and energy – saving: Uses all – copper core energy – saving motor, matched with high – quality ball bearings. The cabinet and air ducts are optimized as a whole. The structure is compact, runs low – noise and stably, with lasting air volume.
- Filtration System: Adopts high – molecular nano – material with graphene – modified antibacterial and water – permeable functions. It has good air tightness and can more effectively inhibit bacteria and remove haze.
- Ultra – thin design: The body is as thin as 20 cm, fully saving the installation space of buildings. For installation sites with limited ceiling height, it provides a one – stop fresh air solution.
- Easy maintenance: Reserve inspection ports during installation. Just open the inspection door below the product to repair, maintain or replace accessories and filter screen.
- Multiple Filtration: The fresh air inlet has primary, medium and high filter cores. The primary filter uses a metal screen, washable without replacement, filtering over 76.1% of large particles. The medium filter uses activated carbon to remove odors. The high – efficiency filter uses PTFE – material composite, with H11 filtration grade and 99.9% filtration efficiency, protecting your health.

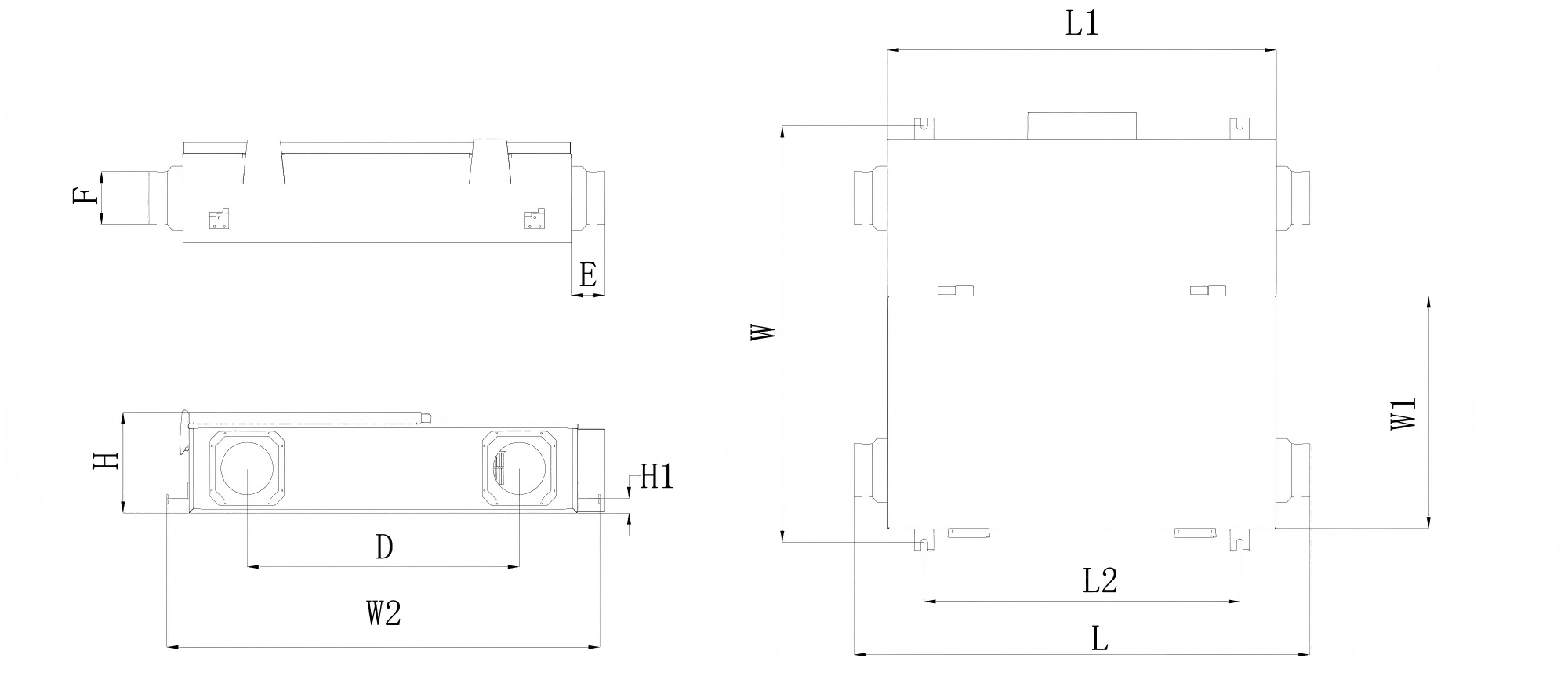

Dimensions (unit: mm):
| Model | L | L1 | L2 | W | W1 | W2 | H | H1 | D | E | F |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BALQR-150 | 867 | 746 | 602 | 816 | 460 | 854 | 222 | 11.5 | 563 | 62 | φ100 |
| BALQR-250 | 893 | 746 | 602 | 816 | 460 | 854 | 222 | 11.5 | 563 | 75 | φ150 |
| BALQR-350 | 893 | 746 | 602 | 816 | 460 | 854 | 252 | 11.5 | 563 | 75 | φ150 |
| BALQR-500 | 885 | 746 | 602 | 816 | 460 | 854 | 282 | 11.5 | 523 | 71 | φ200 |
performance:

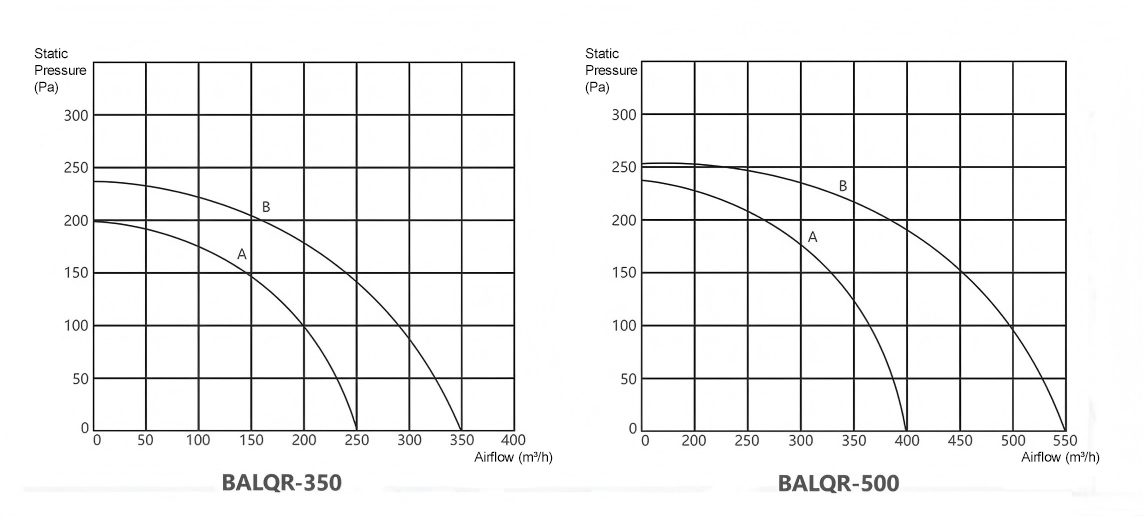

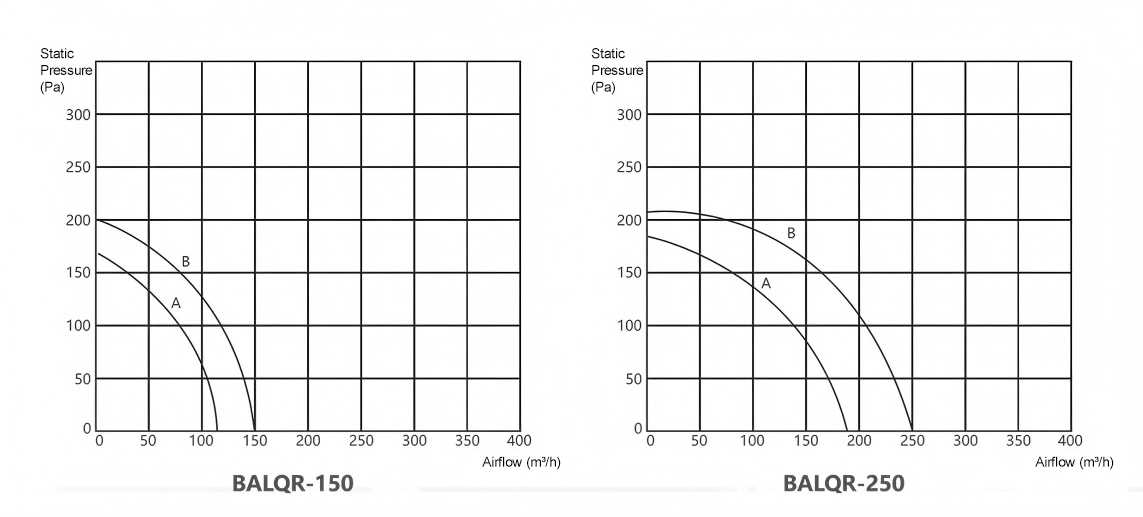

| Model | Voltage(V) | Frequency(Hz) | Gear | Power(W) | Airflow(m³/h) | Static Pressure(Pa) | Primary Filter(%) | High-efficiency Filter(%) | Exchange Efficiency Rate(%) | Enthalpy Exchange Rate(%) | Noise(dB) | Duct Size(mm) | Application Area(m²) | N.W(kg) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cooling | Heating | Cooling | Heating | |||||||||||||
| BALQR-150 | 220 | 50 | High | 100 | 150 | 200 | 76.1 | 99.9 | 63 | 78 | 64 | 68 | 37 | φ100 | 80 | 25.3 |
| Low | 76 | 120 | 170 | 65 | 79 | 66 | 73 | 35 | ||||||||
| BALQR-250 | 220 | 50 | High | 150 | 250 | 210 | 76.1 | 99.9 | 62 | 77 | 64 | 67 | 41 | φ150 | 80-100 | 27.5 |
| Low | 132 | 180 | 185 | 65 | 80 | 63 | 69 | 39 | ||||||||
| BALQR-350 | 220 | 50 | High | 200 | 350 | 230 | 76.1 | 99.9 | 62 | 78 | 61 | 67 | 41 | φ150 | 100-130 | 28 |
| Low | 160 | 250 | 200 | 66 | 81 | 65 | 68 | 39 | ||||||||
| BALQR-500 | 220 | 50 | High | 230 | 550 | 255 | 76.1 | 99.9 | 61 | 70 | 64 | 69 | 42 | φ200 | 150-200 | 32.2 |
| Low | 177 | 400 | 240 | 59 | 72 | 65 | 69 | 40 | ||||||||
