KTJ Cabinet Fan Series
- High – Efficiency and Energy – Saving: Uses an all – copper core energy – saving motor, matched with high – quality ball bearings. Optimizes the cabinet and air duct as a whole. The structure is compact, operates with low noise and stably, and has a lasting air volume.
- Filtration System: Equipped with high – quality filter screen, effectively removing most harmful substances and odors from the air.
- Flexible Model Selection: Wide application range. According to the ventilation requirements of different places, products with an air volume range of 2000 – 6100 m³/h are provided, which are high – quality ventilation equipment preferred by many airtight places.
- Easy Maintenance: Reserve inspection ports during installation. No need to disassemble the whole machine. Just remove the cover on the side of the machine body to inspect, maintain or replace parts.

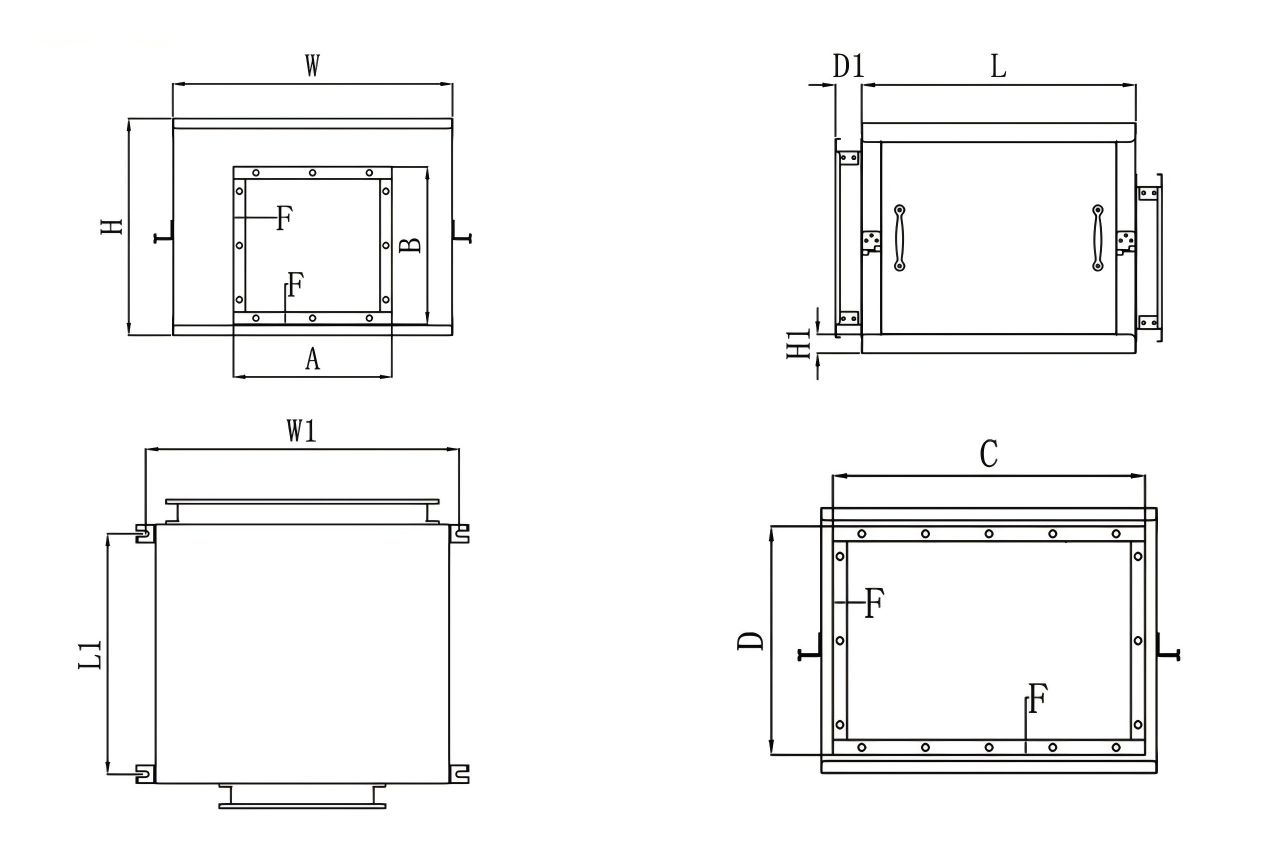

Dimensions (unit: mm):
| Model | L | L1 | W | W1 | H | H1 | D1 | F | Air Outlet Size (AXB) | Air Inlet Size (CXD) |
|---|---|---|---|---|---|---|---|---|---|---|
| KTJ22-20DG | 719 | 452 | 490 | 530 | 372 | 36 | 50 | 25 | 270x265 | 430x312 |
| KTJ23-31DG | 753 | 524 | 592 | 632 | 440 | 36 | 50 | 25 | 335×320 | 550x380 |
| KTJ23-41DG | 753 | 524 | 592 | 632 | 440 | 36 | 50 | 25 | 335x320 | 550x380 |
| KTJ22-20G | 719 | 452 | 490 | 530 | 372 | 36 | 50 | 25 | 270x265 | 430x312 |
| KTJ23-31G | 753 | 524 | 592 | 632 | 440 | 36 | 50 | 25 | 335x320 | 550x380 |
| KTJ23-41G | 753 | 524 | 592 | 632 | 440 | 36 | 50 | 25 | 335x320 | 550x380 |
| KTJ28-51G | 869 | 568 | 700 | 743 | 535 | 35 | 50 | 25 | 410x358 | 640x465 |
| KTJ28-61G | 929 | 628 | 740 | 783 | 600 | 35 | 50 | 25 | 400x460 | 550x460 |

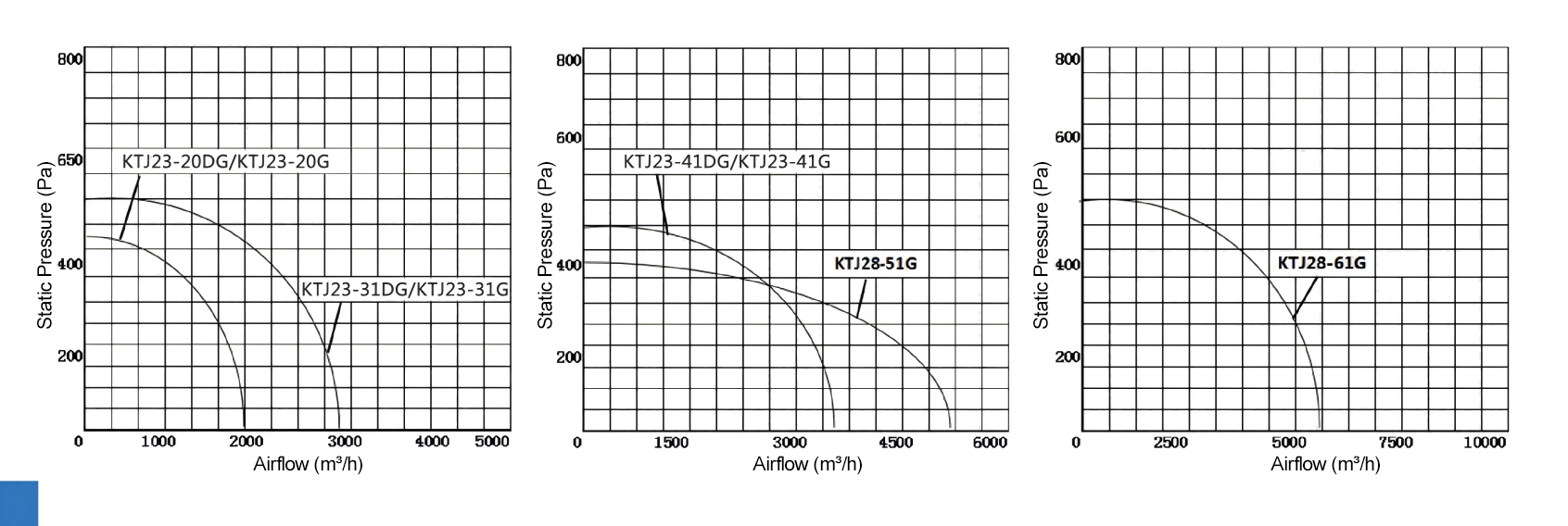

performance:
| Model | Voltage(V) | Frequency(Hz) | Power(W) | Airflow(m³/h) | Static Pressure(Pa) | speed(RPM) | Noise(dB) | N.M(kg) |
|---|---|---|---|---|---|---|---|---|
| KTJ22-20DG | 220 | 50 | 250 | 2000 | 430 | 1340 | 55 | 32 |
| KTJ23-31DG | 220 | 50 | 550 | 3100 | 440 | 1340 | 61 | 41 |
| KTJ23-41DG | 220 | 50 | 750 | 4100 | 460 | 1340 | 65 | 43 |
| KTJ22-20G | 380 | 50 | 250 | 2000 | 430 | 1340 | 55 | 32 |
| KTJ23-31G | 380 | 50 | 550 | 3100 | 440 | 1340 | 61 | 41 |
| KTJ23-41G | 380 | 50 | 750 | 4100 | 460 | 1340 | 65 | 43 |
| KTJ28-51G | 380 | 50 | 750 | 5100 | 300 | 940 | 67 | 60 |
| KTJ28-61G | 380 | 50 | 1100 | 6100 | 410 | 940 | 68 | 70.3 |
