Commercial Fresh Air Ventilator

价格范围：$1.00 至 $2.00

High – Efficiency and Energy – Saving: Uses an all – copper core energy – saving motor, matched with high – quality ball bearings. Optimizes the cabinet and air duct as a whole. The structure is compact, operates with low noise and stably, and has a lasting air volume.
Precision and Durability: All – metal cabinet, made of high – quality plates. The cabinet shell is integrally formed, not easy to deform or dent, and not prone to corrosion or rust.
Independent Supply and Exhaust: An independent supply and exhaust air system sends fresh outdoor air into the room. At the same time, dirty indoor air is exhausted, making the indoor air circulation more even and the breathed air more comfortable.

model

清除

SKU： N/A 分类： Energy Recovery Ventilator

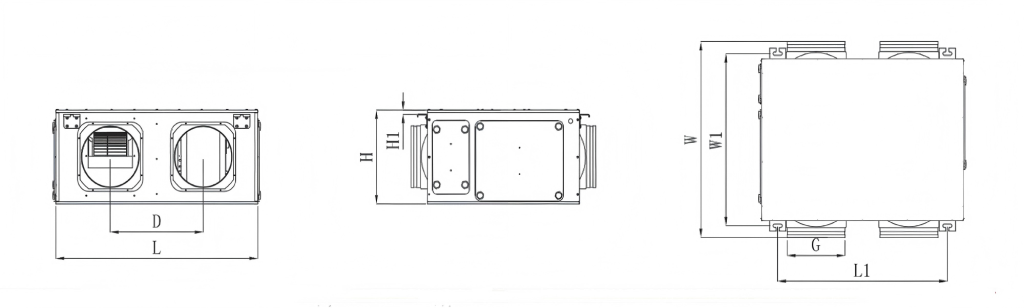

Dimensions (unit: mm):

Model	L	L1	W	W1	H	H1	D	G
DUT20-66	869	731	795	698	365	17	400	φ200
DUT25-76	869	731	795	698	365	17	400	φ250

Commercial Fresh Air Ventilator-size1

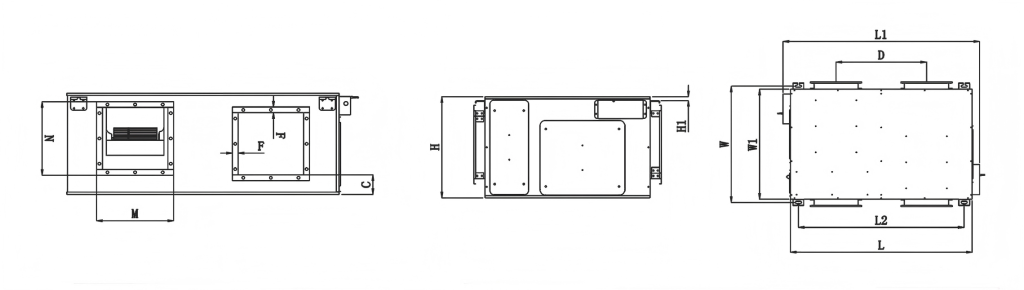

Dimensions (unit: mm):

Model	L	L1	L2	W	W1	H	H1	D	C	F	MxN(Air Inlet/Outlet Size)
DUT25-3000F	1000	1050	897	580	621	376	17	500	85	25	270X270
DUT25-4000F	1000	1050	897	580	621	376	17	500	85	25	270X270

Commercial Fresh Air Ventilator-size2
performance:

Model	Voltage(V)	Frequency(Hz)	Gear	Power(W)	Airflow(m³/h)	Static Pressure(Pa)	Noise(dB)	Duct Size(mm)	Application Area(m²)	N.M(kg)
DUT20-66	220	50	H/L	500/435	1500/1200	350/320	50/45	φ200	250-500	39
DUT25-76	220	50	H/L	565/450	2000/1700	370/340	53/50	φ250	330-660	39
DUT25-3000F	220	50	H/L	722/665	3000/2600	410/385	60/55	/	/	52
DUT25-4000F	220	50	H/L	752/695	4000/3600	445/390	62/60	/	/	55

model	DUT20-66, DUT25-76, DUT25-3000F, DUT25-4000F
