KTJ Cabinet Fan Series

$1.00

High – Efficiency and Energy – Saving: Uses an all – copper core energy – saving motor, matched with high – quality ball bearings. Optimizes the cabinet and air duct as a whole. The structure is compact, operates with low noise and stably, and has a lasting air volume.
Filtration System: Equipped with high – quality filter screen, effectively removing most harmful substances and odors from the air.
Flexible Model Selection: Wide application range. According to the ventilation requirements of different places, products with an air volume range of 2000 – 6100 m³/h are provided, which are high – quality ventilation equipment preferred by many airtight places.
Easy Maintenance: Reserve inspection ports during installation. No need to disassemble the whole machine. Just remove the cover on the side of the machine body to inspect, maintain or replace parts.

model

清除

SKU： N/A 分类： Cabinet Fan

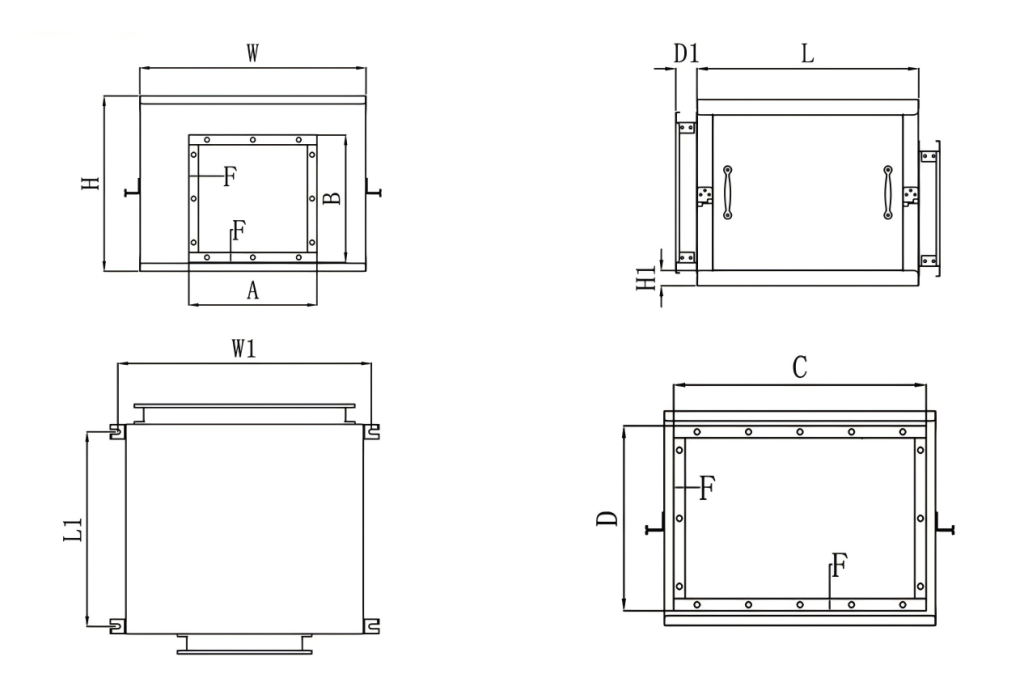

Dimensions (unit: mm):

Model	L	L1	W	W1	H	H1	D1	F	Air Outlet Size (AXB)	Air Inlet Size (CXD)
KTJ22-20DG	719	452	490	530	372	36	50	25	270x265	430x312
KTJ23-31DG	753	524	592	632	440	36	50	25	335×320	550x380
KTJ23-41DG	753	524	592	632	440	36	50	25	335x320	550x380
KTJ22-20G	719	452	490	530	372	36	50	25	270x265	430x312
KTJ23-31G	753	524	592	632	440	36	50	25	335x320	550x380
KTJ23-41G	753	524	592	632	440	36	50	25	335x320	550x380
KTJ28-51G	869	568	700	743	535	35	50	25	410x358	640x465
KTJ28-61G	929	628	740	783	600	35	50	25	400x460	550x460

KTJ Cabinet Fan Series-size

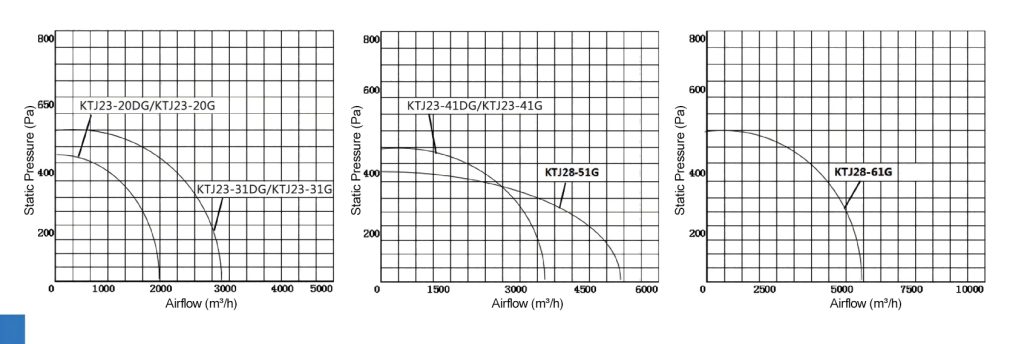

performance:

Model	Voltage(V)	Frequency(Hz)	Power(W)	Airflow(m³/h)	Static Pressure(Pa)	speed(RPM)	Noise(dB)	N.M(kg)
KTJ22-20DG	220	50	250	2000	430	1340	55	32
KTJ23-31DG	220	50	550	3100	440	1340	61	41
KTJ23-41DG	220	50	750	4100	460	1340	65	43
KTJ22-20G	380	50	250	2000	430	1340	55	32
KTJ23-31G	380	50	550	3100	440	1340	61	41
KTJ23-41G	380	50	750	4100	460	1340	65	43
KTJ28-51G	380	50	750	5100	300	940	67	60
KTJ28-61G	380	50	1100	6100	410	940	68	70.3
