Wall Mounted Bathroom Fan
- High Efficiency and Energy Saving: Adopts an all – copper core energy – saving motor, matched with high – quality ball bearings. The chassis and air duct are optimized as a whole, with an exquisite and compact structure. It operates with low noise and stability, and the air volume is long – lasting.
- Flexible Selection and Matching: The full – plastic ventilation fan has a wide variety of types and application scenarios. Select models according to the area of different rooms.
- Exquisite Workmanship and Durability: Made of high – quality ABS material, it is firm and pressure – resistant, not easy to deform or dent, and not easy to be corroded or rusted.
- Convenient Maintenance: The whole machine has a thin – body design, with an exquisite and compact structure. It can be installed on the ceiling. Suitable for ventilation needs of different places.

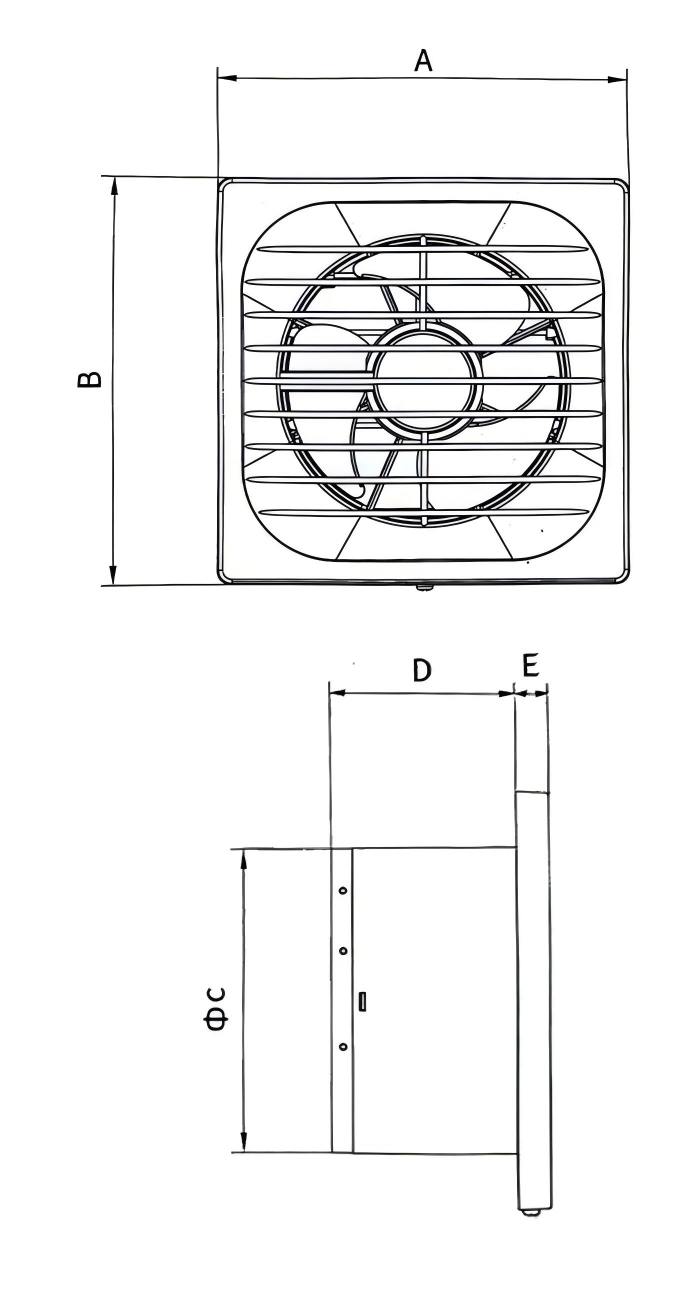

Dimensions (unit: mm):
| Model | A | B | C | D | E |
|---|---|---|---|---|---|
| APC10-S-N | 150 | 150 | 97 | 85 | 16 |
| APC15-2S-N | 200 | 200 | 145 | 88 | 16 |
| APC20-3S-N | 252 | 252 | 179 | 98 | 16 |
performance:
| Model | Size(mm) | Voltage(V) | Frequency(Hz) | Power(W) | Airflow(m³/min) | Noise(dB(A)) |
|---|---|---|---|---|---|---|
| APC10-S-N | 100 | 220 | 50 | 9 | 1.5 | 39 |
| APC15-2S-N | 150 | 220 | 50 | 16 | 3.0 | 39 |
| APC20-3S-N | 200 | 220 | 50 | 18 | 4.2 | 43 |
